I Bought Two Broken Zoom SampleTrak ST-224s for $150. Here's How I Fixed Them.

5/19/20264 min read

Facebook Marketplace is dangerous if you don’t know what you're looking at. A few weeks back I came across a listing for two Zoom SampleTrak ST-224s being sold together for $150 – both broken. The post said the pads were "hard," which in my experience means either hard to trigger or completely dead. Either way, I had a pretty good idea what was going on inside.

The ST-224 is one of those machines that flies under the radar. It's in the same lane as the SP-202 – a late-90s sampler built for portability, with a lo-fi character that people are starting to pay real money for. At $75 a unit broken, the gamble made sense. So I grabbed them, filmed the whole process, and here's what I found.

What You're Working With

These two units were rough. We're talking smoker's tar buildup, burn marks, one with liquid damage, and a tact switch that needed replacing. Not pretty, but none of it was fatal. The internal layout is actually pretty simple – two PCB boards, a reasonable screw count, and enough room to work. Less complicated than I expected going in.

The pads on the ST-224 work the same way as a lot of vintage samplers and keyboards from this era: rubber pads with a conductive carbon coating on the bottom make contact with a grid on the PCB when pressed. When that carbon coating wears down, gets dirty, or flakes off, the pads stop registering. That's almost always the culprit on machines like this.

The Teardown

Getting inside is straightforward. Remove the screws, lift the top PCB first, it gives you access to the bottom one underneath. I noticed one of the units had a slightly different back plate design with no center holes, just four corner screws. Small variation between units, not a big deal.

A few reassembly notes worth knowing ahead of time:

  • The top PCB can be finicky getting seated. Lay it flat and push it up so everything slots into the back correctly.

  • The cables connecting to the inputs and outputs may need to be guided upward and around as you seat the board, nothing complicated, just takes a second.

  • Line up the guide holes in the middle first, screw in the corners to lock placement, then work outward.

  • On more complex machines I'll photograph every step before disassembly. The ST-224 is simple enough that you can skip that.

Cleaning: What to Use and Why It Matters

This is where people make mistakes, so pay attention to the products and the order.

PCB contacts:

Use 99% isopropyl alcohol. The key is 99% - the lower water content means it won't damage the board. I buy it by the case from Amazon because I'm always working on something. Before going all in, I tested a small area to confirm the conductive contact paint on the PCB wouldn't lift. It didn't, so I cleaned the whole grid.

Rubber pads:

Start with Windex. Alcohol dries out rubber, so for regular maintenance cleaning, blue Windex is the move, it's what I use on my MPC pads too. I only used ISO on these pads to strip the old carbon coating off the bottom before reapplying new material. For normal cleaning, stick to Windex.

Audio inputs and pots:

DeoxIT D5 on a Q-tip for the audio inputs. For the pots and the jog wheel, use the DeoxIT Fader version, it's a cleaner plus light lubricant designed specifically for moving parts. Don't mix them up. Using the wrong version for the wrong application defeats the purpose.

Fixing the Pads: The KeyPad Fix Method

Once the old coating is stripped and the pads are dry the 99% ISO evaporates fast so you're not waiting long, it's time to reapply conductive paint. The product I used is called KeyPad Fix. It's a carbon-based paint originally made for security keypads and punch pads. About $15 a jar, and it goes a long way.

A few things to know before you use it:

  • Shake and mix it thoroughly before applying. It settles.

  • Apply a thin coat. You don't need to be obsessively precise about staying in the pad cell boundary, but keep it light.

  • Let it dry fully before reassembly.

  • Work on a project mat. I spilled it. It happens.

If you've got any sampler, keyboard, or piece of gear with pads that work on this same contact principle. If they are non-responsive, sluggish, or completely dead, KeyPad Fix is the fix. It's not machine-specific.

The Second Pass (and Why You Might Need One)

After the first round of cleaning and reassembly, some buttons were still acting up. Took it apart again. Turned out there was residual carbon paint flaking off the pads that had settled on the PCB contact grid. Missed it the first time. Another ISO wipe on the board contacts and everything was clean.

Also worth noting: part of what I thought was a pad issue on one unit was actually me not knowing how the machine worked yet. The ST-224 has a pad mode button on the right side that opens a sub-menu for pad functions. I wasn't operating it correctly at first. Know your machine before you assume something's broken.

Quality of Life: The Rubber Feet

The original foam feet were crumbling. Pulled them off with a knife and some ISO on a flat head, and swapped in rubber grip feet so the units don't slide around on the table. Easy upgrade, takes five minutes, makes the machine actually usable on a desk.

The Result

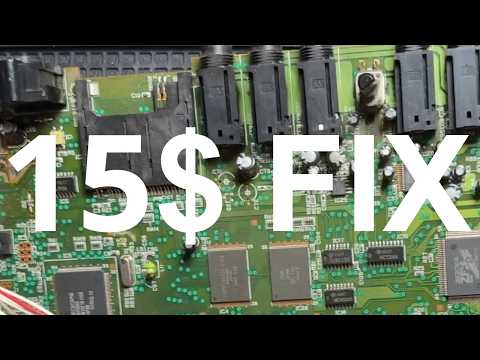

Both units are 100% working. Full pad response, all inputs and outputs functioning, buttons good. Total cost for the repair including the HePad Fix and replacement tact switches was around $15, and the tact switches that fit my MPCs happen to fit the ST-224's PCB as well, so I was already stocked.

One of them still has a cigarette burn on the Special button. I thought about 3D printing a replacement. Probably won't. There's character in that.

The machine also came loaded with whoever had saved samples from before, some of them actually slapped. And once I got a SmartMedia card ordered, I was able to pull up the original factory sounds too. Wild little machine. I'll be doing a separate video on whether it's actually worth your time and how it stacks up. Stay tuned.

What You'll Need

  • 99% Isopropyl Alcohol

  • KeyPad Fix conductive carbon paint (~$15)

  • Windex (blue, standard)

  • DeoxIT D5 (for audio inputs)

  • DeoxIT Fader (for pots and jog wheel)

  • Tact switches (standard MPC-compatible size)

  • Q-tips, project mat, flat head screwdriver

  • Replacement rubber grip feet (optional but recommended)

Questions about the repair or the machine? Drop them in the comments, I check regularly and I'm always happy to help debug. You can also hit us up through the contact on the site or jump in the Discord. More ST-224 content coming soon.
